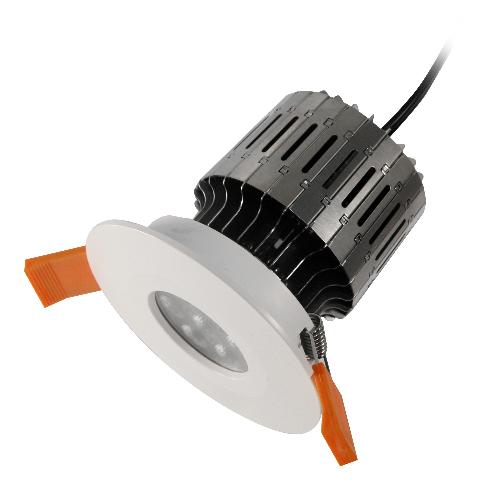

| Evo50 F4 IP44 |
|
| 15W LED MR16 Type |
|
|
Characteristic:
- Stylish mounted ring IP44 for damp area application, cutout 70mm,
- Customized version for adjustable +/-15ﾟvariable
- Brilliant light output powered by CREE XP-E with consistent color temperature
- Complete kit with dimmable driver, and plug & Play connector
- 15W replace 50W Halogen with 70% energy saving and 33 times of Halogen lifetime
- 60ﾟor 30ﾟ wide beam angle shaped by anti-glare lens
- Original Heatsink technology with technologica thermal design
- Free of ultraviolet and infrared radiation
- Long Lifetime >50,000hrs & 3 years guarantee
Specifications:
|
Part Number
|
15W MR16 LED Lamp
|
|
Evo50 F4 IP44
|
|
Power Consumption
|
W
|
15W
|
|
Color Temp
|
Kelvin
|
3000K
|
4000K
|
|
Operated Current
|
mA
|
700mA
|
700mA
|
|
Lumens
|
lm
|
695lm
|
790lm
|
|
Central Candela
|
cd
|
3564cd
|
4050cd
|
|
Color Rendering
|
Ra
|
>85
|
>85
|
|
Luminescent Efficiency
|
lm/W
|
51lm/w
|
53lm/w
|
|
Beam Angle
|
Deg
|
15ﾟ30ﾟ60ﾟ
|
|
Dimension
|
mm
|
Dia. 90 x 84mm at heat sink
|
|
Weight
|
g
|
210g
|
|
Anti-glare lens
|
Deg
|
60ﾟor 30ﾟ
|
|
Operating Temp
|
℃
|
-30~60℃
|
|
Storage Temp
|
℃
|
-30~80℃
|
|
Standard Compliance
|
CE
|
IEC60598-1
|
|
Module
|
IEC62031
|
|
IP
|
44
|
|
Life Time
|
Hrs
|
35,000hrs or above
|
|
Guarantee
|
Yrs
|
3 years
|
|
|
