| E-6F |
|

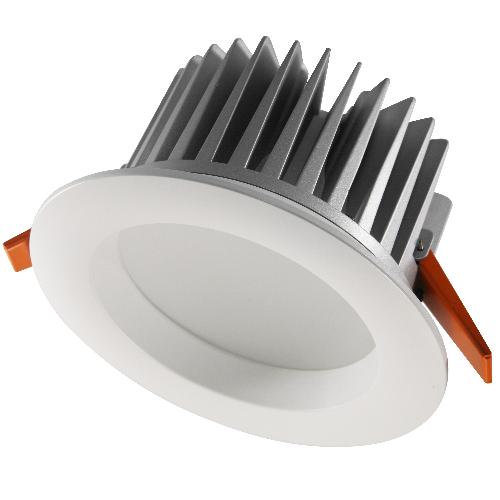

| 25W LED Downlight (External) |
|
|
Characteristic:
- Original fixture design, unique in the market
- Interchangeable mounted ring twisted & lock, rotatable fixing clip is adaptable to 1~35mm ceiling
- High quality diffuser and reflector, advanced optical system generate comfortable and uniform light. (UGR 19)
- IP44 Protection Class to grade guarantee system to be moisture and insect proof
- High Lumen output powered by CREE XP-G LED with consistent color temperature
- Typical output at standard 25W: 1300Lm for 3000K; 1500Lm for 4000K to replace 2*18W CFL downlight
- Customized version 34W and 15W is available (Replace 2*26W or 2*13W CFL Downlight)
- Complete kit with Dimmable (Triac) driver
- Long Lifetime >50,000hrs & 3 years guarantee
Specifications:
|
Part Number
|
25W LED Downlight
|
|
E6F
|
|
Power Consumption
|
W
|
25W
|
|
Color Temp
|
Kelvin
|
3000K
|
4000K
|
|
Lumens
|
lm
|
1300lm
|
1500lm
|
|
Color Rendering
|
Ra
|
>85
|
>85
|
|
Beam Angle
|
Deg
|
80ﾟ
|
|
Dimension
|
mm
|
Dia. 208 x 92mm at heat sink
|
|
Weight
|
g
|
2200g
|
|
Cutout
|
mm
|
175mm
|
|
Operating Temp
|
℃
|
-30~60℃
|
|
Storage Temp
|
℃
|
-30~80℃
|
|
Standard Compliance
|
CE
|
IEC60598-1
|
|
Module
|
IEC62031
|
|
Protection Class
|
IP
|
IP44
|
|
Life Time
|
Hrs
|
35,000hrs or above
|
|
Guarantee
|
Yrs
|
3 years
|
|
|
